Industrial Connectors / PowerCon

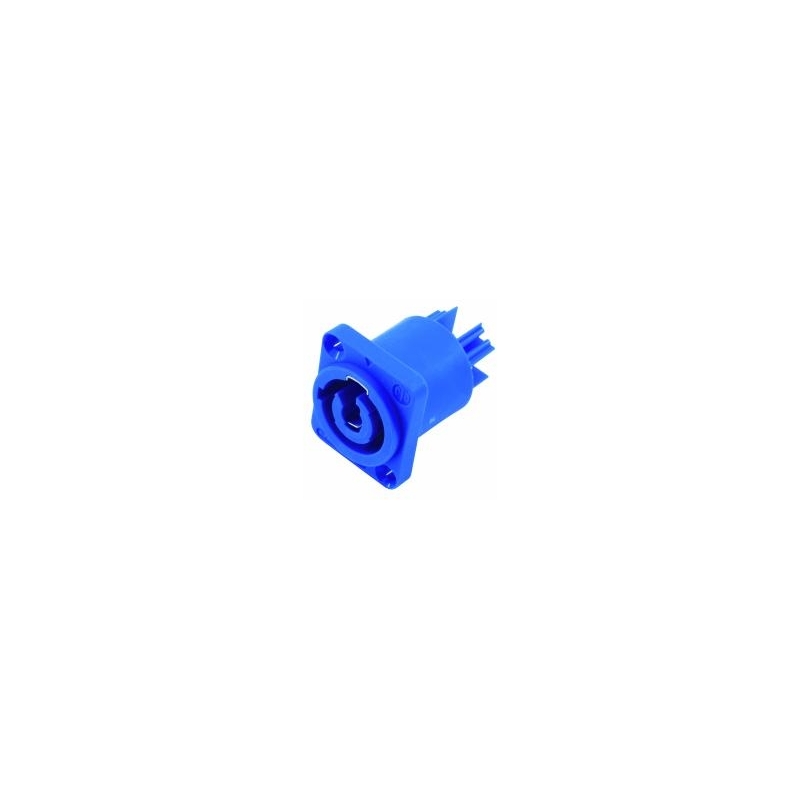

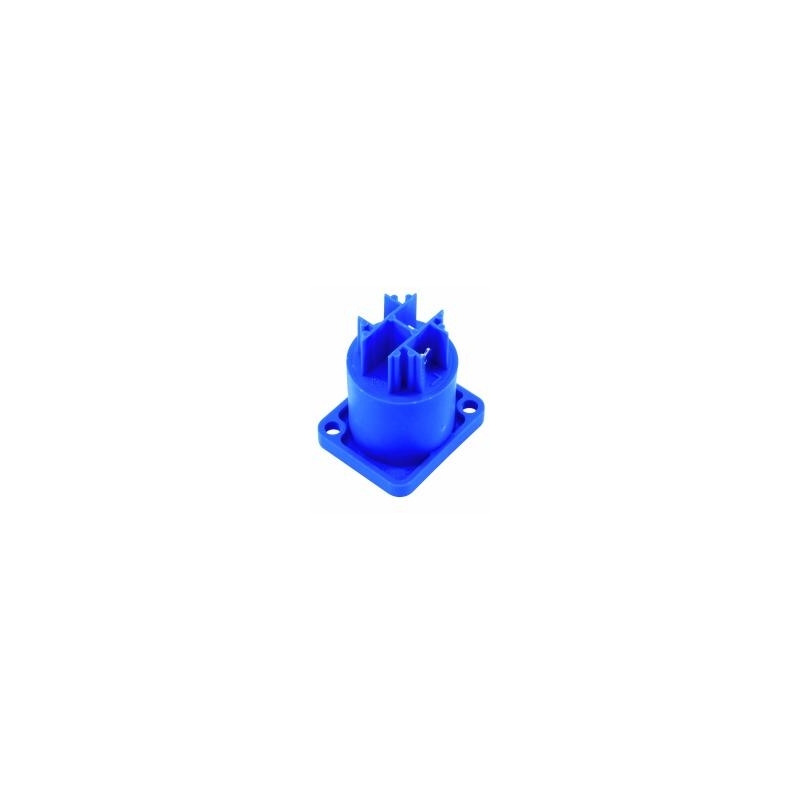

Locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. Fast and easy locking system. High current capacity (20 A rated). Extremely robust and reliable. Meets all prevailing safety standards. UL recognized, VDE certified and SEV approved. Very good cable handling and protection. Note: The PowerCon is a connector without breaking capacity, i.e. the PowerCon should not be connected or disconnected under load or live!
? Premating safety ground
- Quicklock with securing lever
- Cable O.D. range: 5 – 15 mm
- With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit
- Appropriate plugs are identified by mechanical keyways and by color
- Made in Europe
Date tehnice:
| Number of contacts: | 2 + PE |
| Rated current per contact: | 20 A RMS |
| Rated voltage: | 250 V AC |
| Dielectric strength: | 4000 V DC |
| Contact resistance: | <=3 mohms |
| Insulation resistance after damp heat test: | >100 Mohms |
| Creepage distance: | according to IEC 664-1 |
| Cable retention force: | = 220 N, depending on cable dia and material |
| Wiring: | Flat tabs for FASTON 4.8 mm x 0.5 mm (0.187″ x 0.02″) or soldering |
| Solderability: | complies with IEC 68-2-20 |
| Housing: | PA 6 30% GR |
| Insert: | PA 6 30% GR |
| Contacts: | CuZn39Pb3 / CuSn6 |
| Contact surface: | L+N 20 µm Ag plated, Earth 4 µm Ag plated |
| Chuck: | POM |
| Temperature range: | -30°C to +80°C |
| Flammability: | UL94HB |
| Protection class (mated): | IP20 |
