Descriere

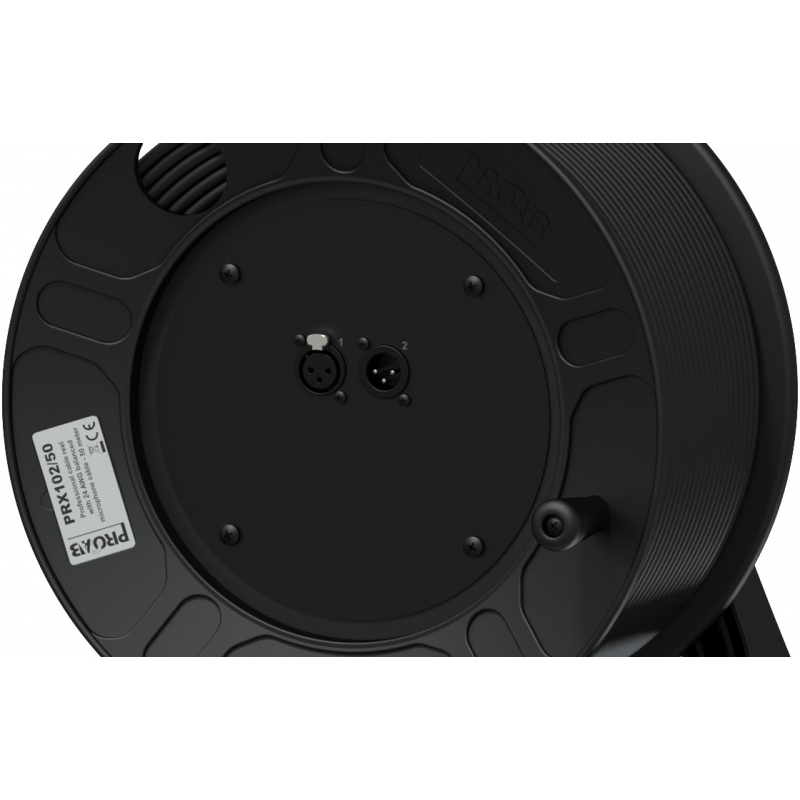

The PRX102 is a HighFlex balanced microphone cable (RMC306) assembled on a lightweight, extremely strong and impact resistant plastic reel (CDM310).
The conductor section is constructed using two 24 AWG stranded conductors which are surrounded by a braided shielding, offering a high immunity against noise and interference caused by external devices. The cable is jacketed using highly flexible and durable PVC materials, which guarantee a high flexibility and reliability for mobile applications.

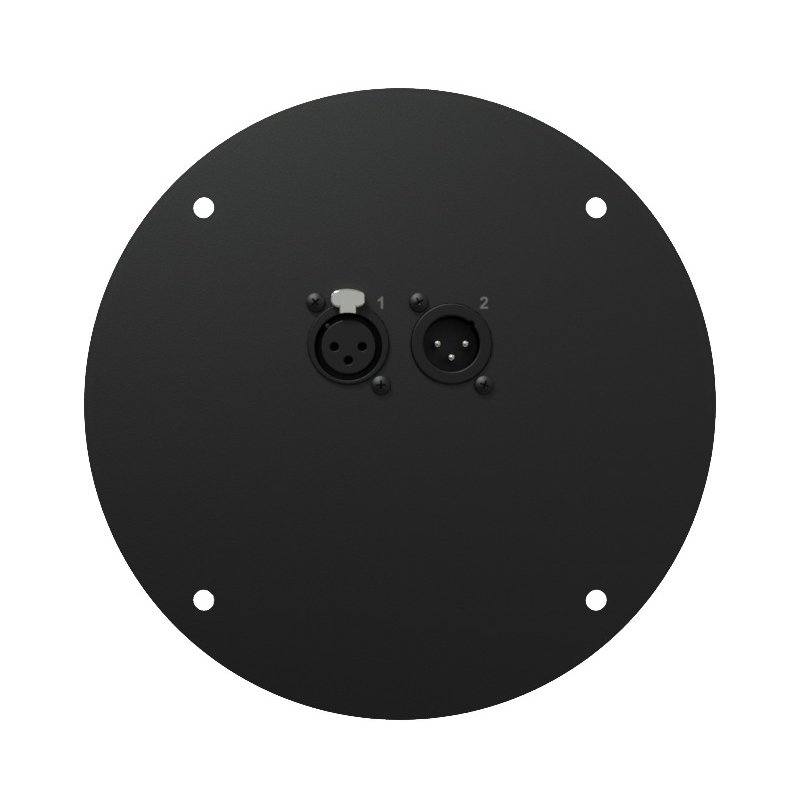

The cable end is terminated using a male Neutrik XLR connector while the chassis side is fitted with both a male and female Neutrik XLR connector allowing linkthrough.
Highlights
- NC3MXX-BAG, NC3FDLX, NC3MDLX Neutrik connectors
- polycarbonate reel
Date tehnice:
| Cable Type | RMC306 |
| Type of cable | Balanced microphone cable |
| Inner conductor | BC 20 x 0.12 mm (OFC) |
| Inner conductor section | 0.22 mm² |
| Number of conductors | 2 |
| Insulation | PE Ø 1.6 mm |
| Insulation Colour | Red / White |
| Filler | Cotton yarn |
| Separator | Cotton paper |
| Shielding | Braiding BC 16 x 4 x 0.12 mm > 63% coverage |
| Outer jacket | Highflex PVC |
| Outer jacket colour | Black |
| Outer jacket dimensions | Ø 6.0 mm |
| American Wire Gauge | 24 AWG |
| Connection Type | XLR male (cable) to XLR female & male (chassis) |
| Fitted Connectors | NC3MXX-BAG, NC3FDLX, NC3MDLX |
| Dimensions (W x H x D) | 312 x 392 x 234 mm |
